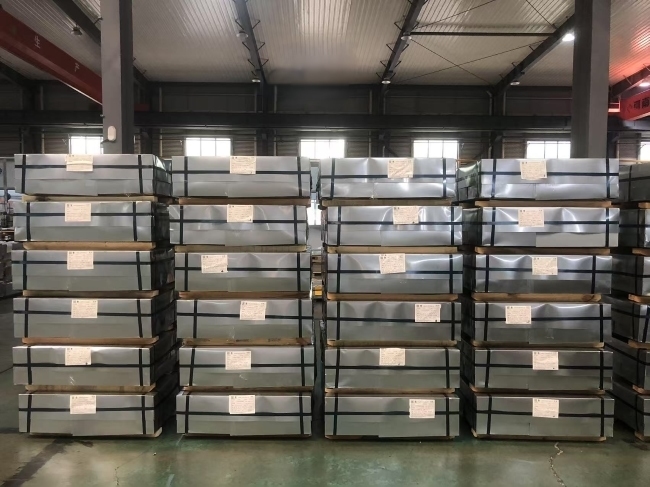

QuanJiang's Electrolytic Tin Plate (ETP) & Tin-Free Steel (TFS) Coils redefine can manufacturing for carbonated and energy drinks. Precision-engineered at 0.16-0.35mm thickness with bright, stone, silver, and matte finishes, these SGS-certified coils combine extreme corrosion resistance, high-speed formability, and vibrant print readiness for demanding beverage applications.
✔ Pressure-Tested Integrity
Withstands 90psi internal pressure (carbonation stability)
TS260-TH550 hardness for seam integrity
✔ Surface-Optimized Finishes
Bright (95+ GU): Premium shelf appeal
Matte (0.8-1.2µm Ra): Scratch resistance during filling
Stone (1.5-2.5µm Ra): Enhanced paint adhesion
✔ Chemistry-Resistant Design
pH 2.5-4.5 compatibility (citric/phosphoric acids)
Zero flavor migration
| Parameter | Specifications |
|---|---|
| Material | Prime MR/SPCC Steel |
| Thickness Range | 0.16–0.35mm (±0.005mm) |
| Width | 660–1,000mm (slitting tolerance ±0.5mm) |
| Coating Options | 2.0/2.0 – 5.6/5.6 g/m² (differential available) |
| Temper Grades | T2-T5, DR7-DR9 |
| Peak Pressure | 0.2mm: 75psi; 0.35mm: 120psi |
Filling Line Efficiency: 2,000 cans/min compatibility
Print Superiority: 25% ink reduction vs. standard TFS
Supply Chain Power: 50,000 MT/month; 25-ton MOQ
Sustainability: 100% recyclable; 88% recycled content
| Thickness | Can Component | Performance Edge |
|---|---|---|
| 0.16mm | Easy-open ends | 22% weight reduction |
| 0.19mm | Slim can bodies | 80psi burst strength |
| 0.20mm | Standard lids | Optimal seam weldability |
| 0.35mm | Large format (500ml) | Vibration resistance |
Q: Why TFS over ETP for energy drinks?
A: 30% better paint adhesion and superior acid resistance at lower cost.
Q: Minimum thickness for CO² containment?
A: 0.19mm DR8 maintains seal at 4.0vol CO².
Q: Certification for US FDA compliance?
A: Meets FDA 21 CFR 175.300 – extractables <50ppb.
Q: Lead time for custom widths?
A: 18 days with SGS corrosion test reports.
Q: Recycling compatibility?
A: Fully EAF-ready – chromium layer vaporizes at 1,600°C.
